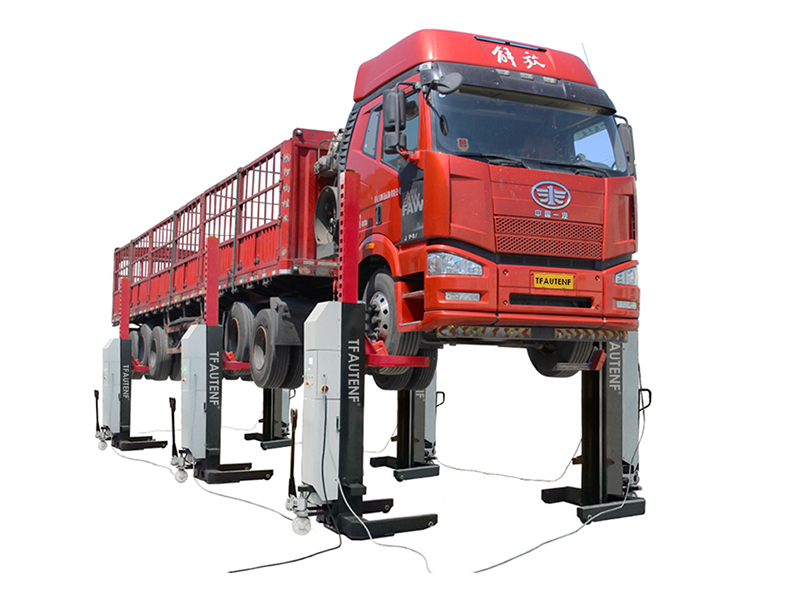

1689147188144792.jpg  烟台腾飞工贸生产车间视频播放













TFAUTENF有线重卡举升机视频

6柱有线重卡举升机 TF-6155/TF-6175
参数/型号Specifications/ModelsTF-6155TF-6175
柱子数量Column quantity66
单柱举升重量Lifting weight per column5.5T/5500kg/12000lbs7.5T/7500kg/16500lbs
总举升重量Total lifting capacity33T/33000kg/72000lbs
45T/45000kg/99000lbs
举升高度Lifting height1750mm1750mm
适用轮胎直径Applicable tire diameter500mm~1120 mm500mm~1120 mm
叉臂长度Fork length402 mm402 mm
上升/下降时间Lifting time/Falling time75s/110s75s/110s
工作电压Working voltage380V380V
单柱功率Motor power per column2.2kw2.2kw

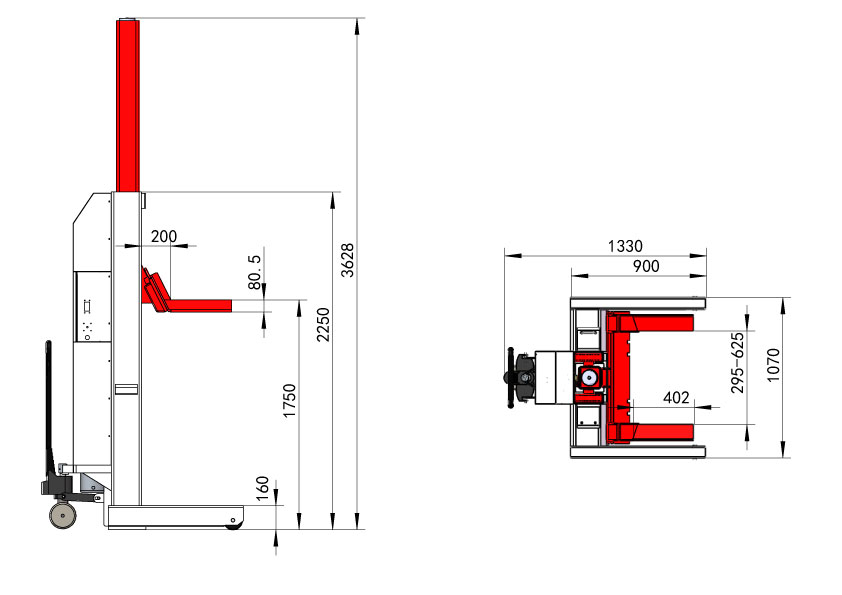

柱子尺寸Column size(L*W*H)1330mm×1100mm×2250 mm1330mm×1100mm×2250 mm
柱子重量Column weight580kg630kg
移动式三角支架Mobile axle stands选配Optional选配Optional

    TFAUTENF重卡举升机是一种专门用于汽车维修保养的设备,主要用于举升比较大的重型卡车。它可以通过液压系统将重型卡车抬升至一定高度,便于对其进行车底维修、更换轮胎、更换液压油等操作。重卡举升机需要具备强大的承重能力和稳定性,以确保安全和可靠性。此外,它还需具备可移动性,以方便在不同位置使用。举升机还可以用于举升货物,生产线配套、物流码头等,前提必须确保货物的钢性强不折弯。高科技的自主生产线和国际化的组织团队使其成为重卡举升机领域的佼佼者,备受重卡汽保商、公交车维修服务站、装载车厂等领域青睐!我们严格按照欧洲标准 EN1493:2010 要求进行设计制造。

产品优势:

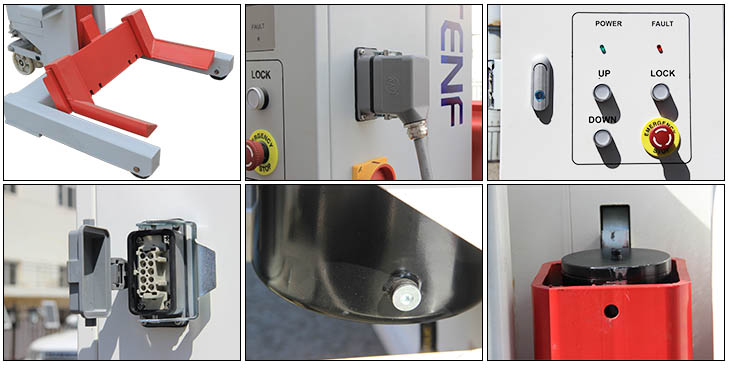

A.设备采用闭环控制原理:可进行单柱,双柱或多柱选择操作,采用微电脑处理器实时控制,实现高精度同步,设备主立柱上配有液晶显示屏,实时显示升降高度,电池电量,以及设备故障报警码。

B.设备符合人机工程学原理:每根柱子配有独立的控制系统和液压动力单元,可连接6根或8根柱子

C.安全措施:当设备处于安全承载状态下,具有机械/液压双锁功能,自动过载保护,在最高的和最低点自动停止。当举升机下降到离地面330mm时,蜂鸣器报警,提醒操作人员不要将脚放在举升机下方。

D.故障诊断功能:设备运行过程中,当高度差达到15mm时,微电脑自动调整平衡。如果严重超出公差(≥50mm)或某一立柱断电无法提升,设备将自动停机。产品具有液晶屏显示列高、模式、状态,具有自诊断功能,并可显示故障状态。

E.每个柱子上均设有独立的电源开关、紧急停止开关,一旦有紧急情况,能够第一时间断电。

F.支持双柱模式,只需要通信线路连接主柱和任何辅助柱(双柱模式下,其中一柱必须是主柱供电)

G.每根立柱上均配有航空插座,通过电缆数据线连接在一起,立柱上配有一个电缆数据线收纳U型夹。

H.为方便设备移动,每柱均设有液压小车,可手动拖动,并配有防翻转的叉车支架。

Product advantages:

A.The equipment adopts closed-loop control principle: single column, double column or multi-column selection operation, real-time control by microcomputer processor, to achieve high precision synchronization, the main column of the equipment is equipped with a liquid crystal display, real-time display of lifting height, battery power, and equipment fault alarm code.

B. Human Engineering: Each column is equipped with an independent control system and hydraulic power unit, which can be extended to connect six or eight columns.

C. Safety measures: When the equipment is in a safe loading state, it has a mechanical/hydraulic double locking function, automatic overload protection, which automatically stops at the highest and lowest point. When carriages descend to 330 mm off ground, they will stop automatically, and warning alarm rings to remind operator not to put feet under carriages.

D. Diagnosing trouble function: During the operation of the equipment, when the height difference reaches 15mm, the microcomputer automatically adjusts the balance. If it is seriously out of tolerance (≥50mm) or cannot be lifted due to power failure on a certain column, the equipment will automatically stop. The product has a LCD screen display column height, mode, status, has a self-diagnosis function, and can display fault status.

E. Each column is equipped with an independent power switch, emergency stop switch, once there is an emergency, can be the first time off.

F. Supports dual-column mode, just connect the main column and any auxiliary column with a communication line (in dual-column mode, one of the columns must be the main column to provide power)

G. Each column is equipped with an aviation socket, connected by a cable data line, and the column is equipped with a cable data line storage U-shaped clip.

H. In order to facilitate the movement of the equipment, each column has a hydraulic trolley, which can be manually dragged, and is equipped with an anti-reverse forklift bracket for forklift fork lifting.
